Big Beam Competition


The Fabrication

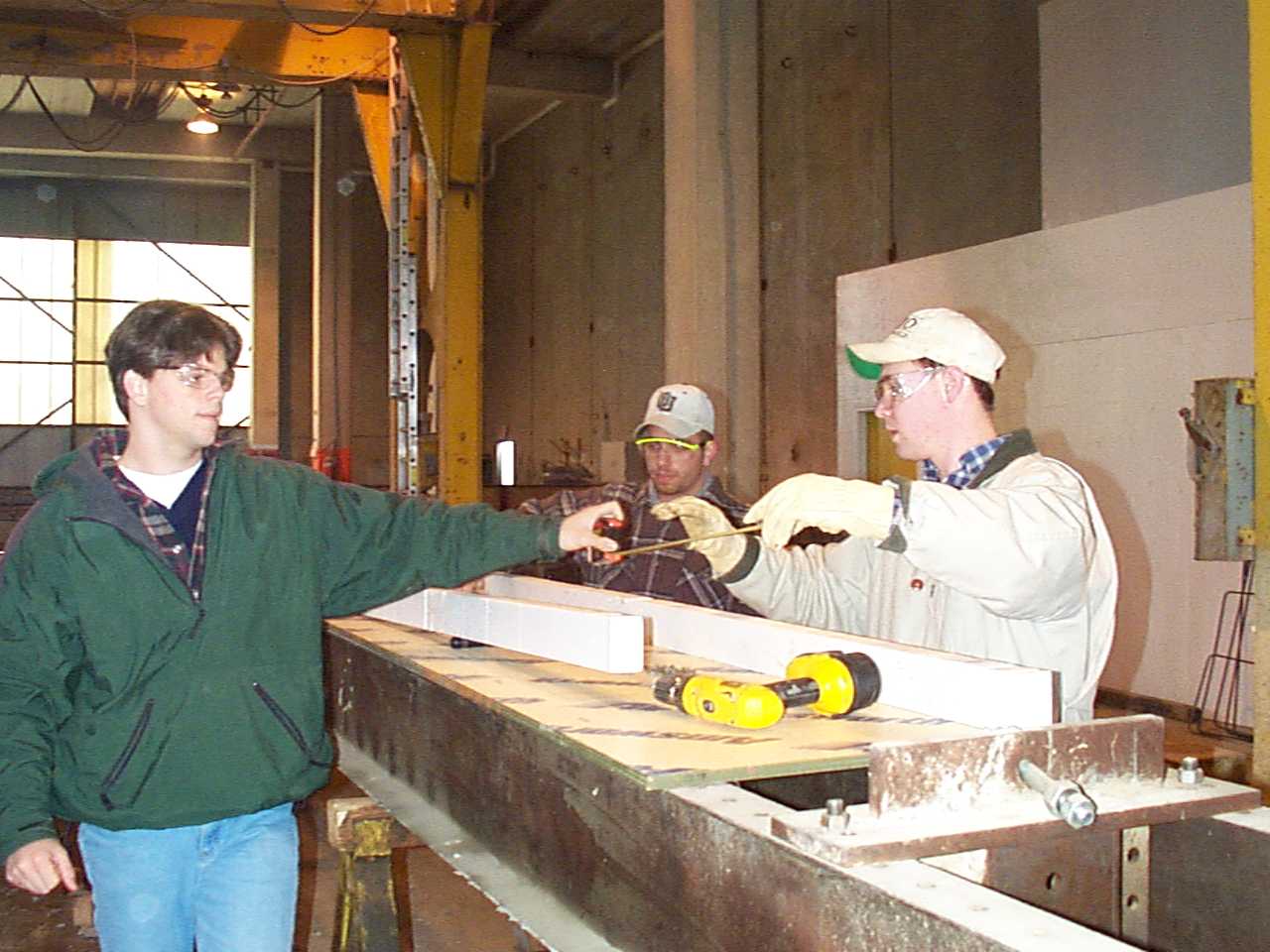

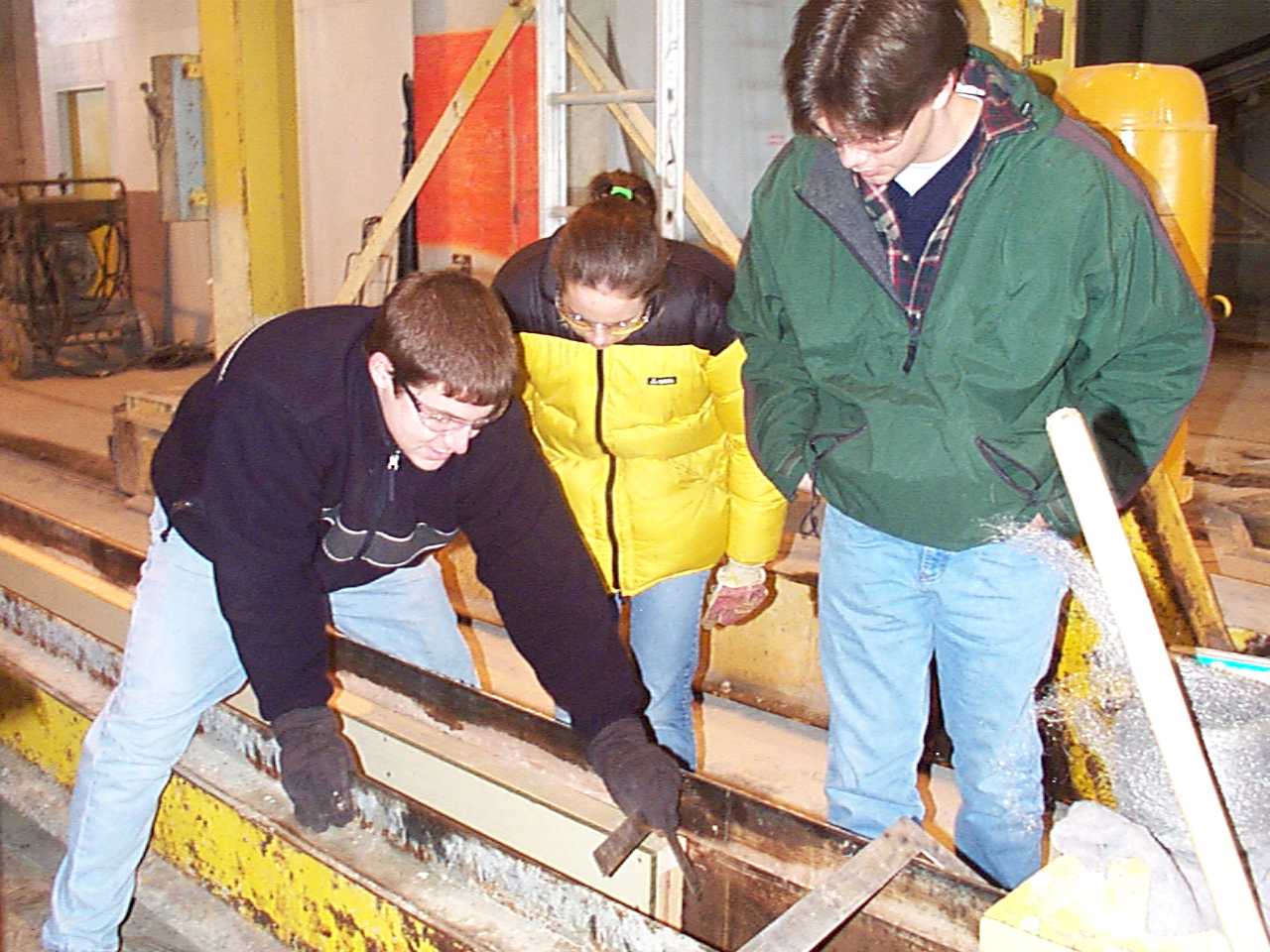

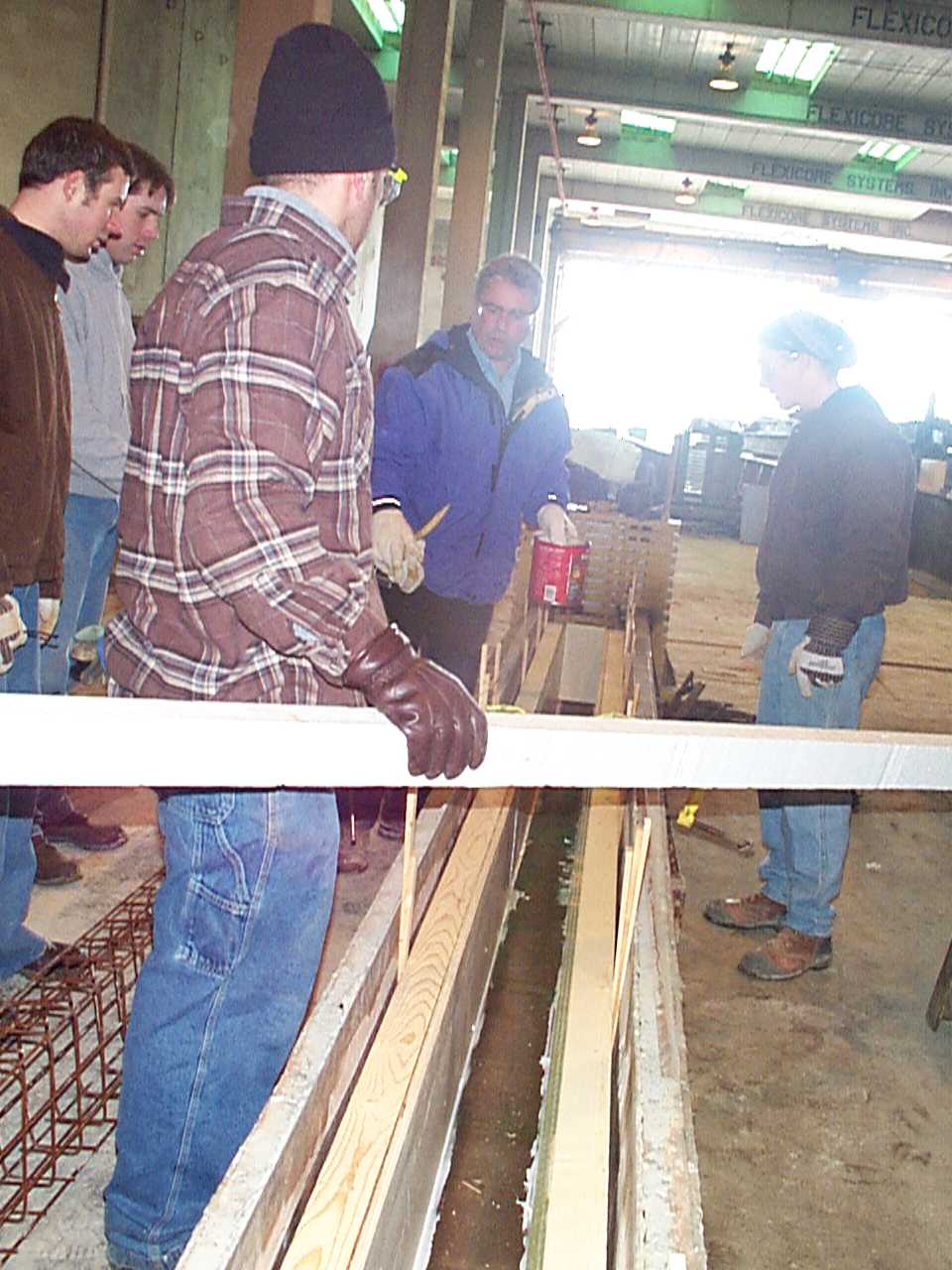

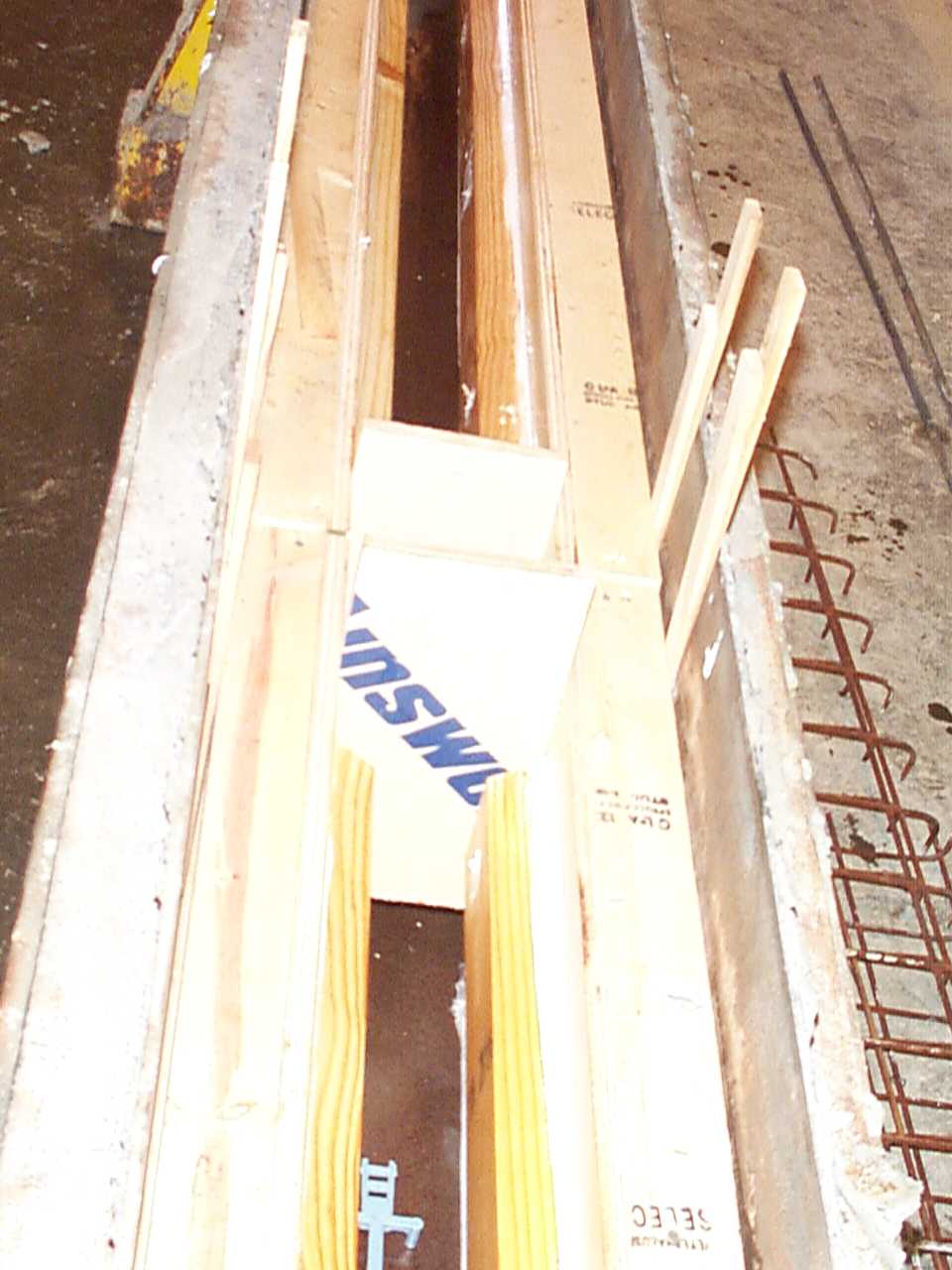

Tray2035.jpg (93898 bytes) Form for I-section.  Foam maintained full box section at center of beam to resist moment.

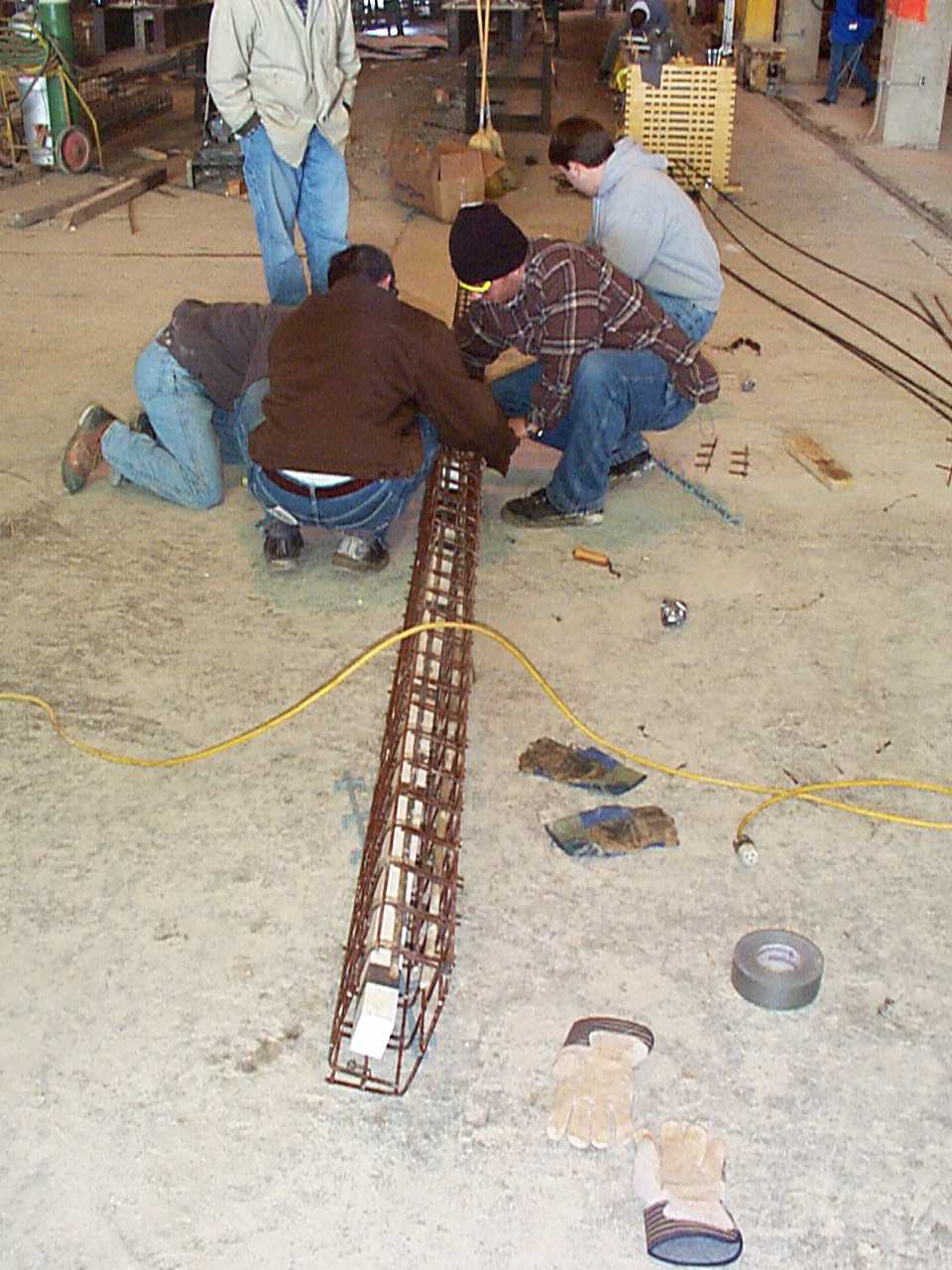

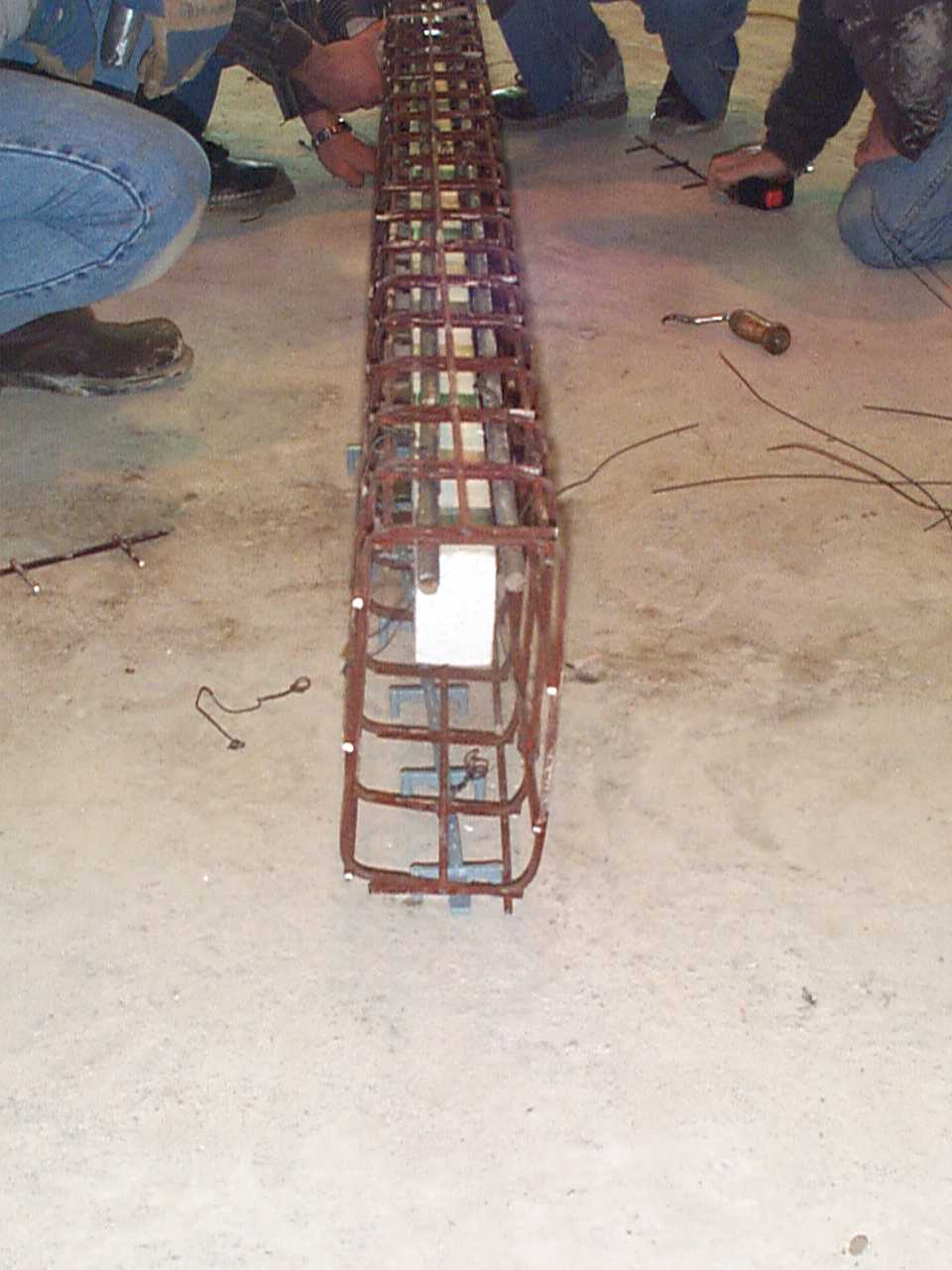

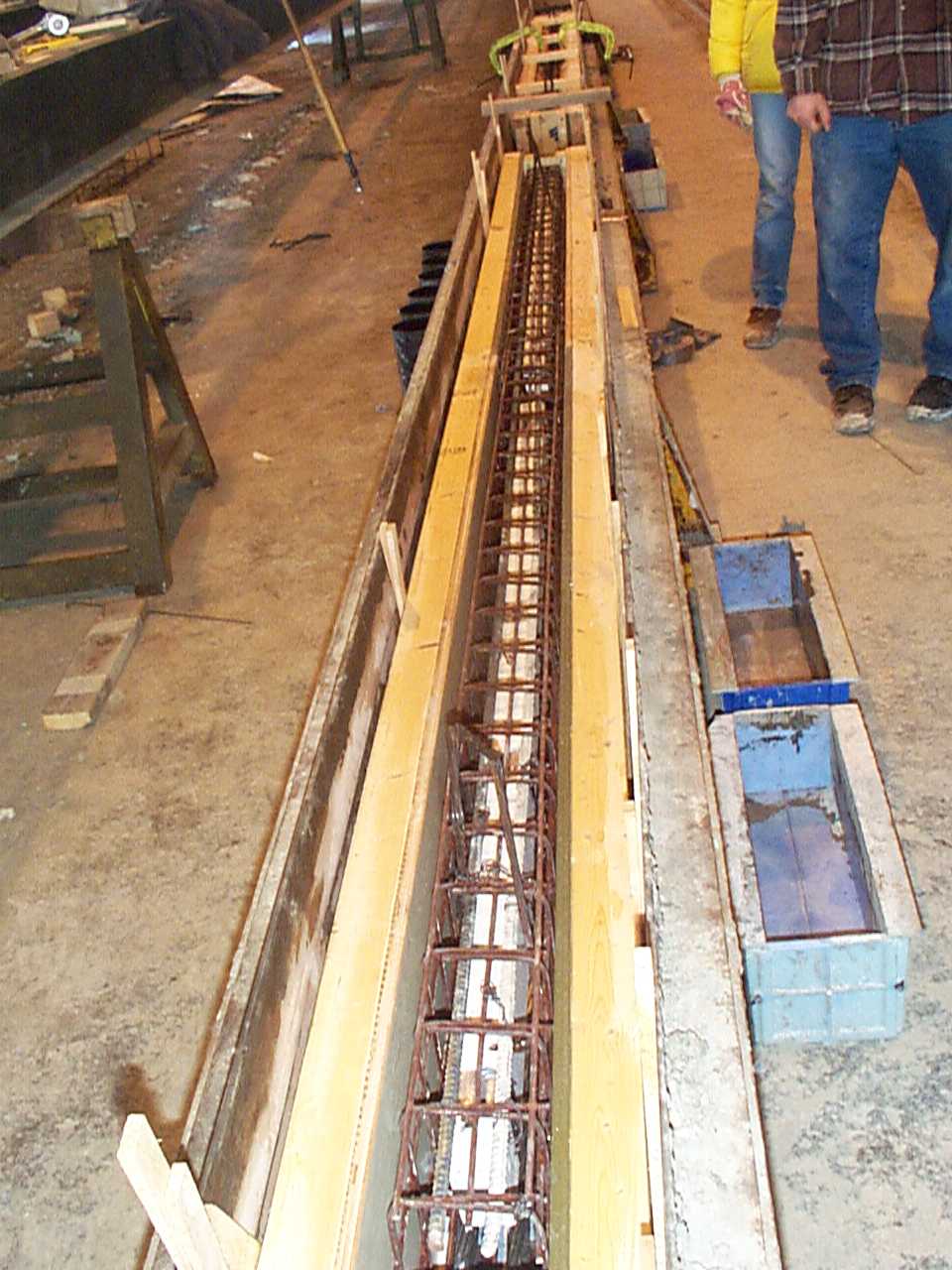

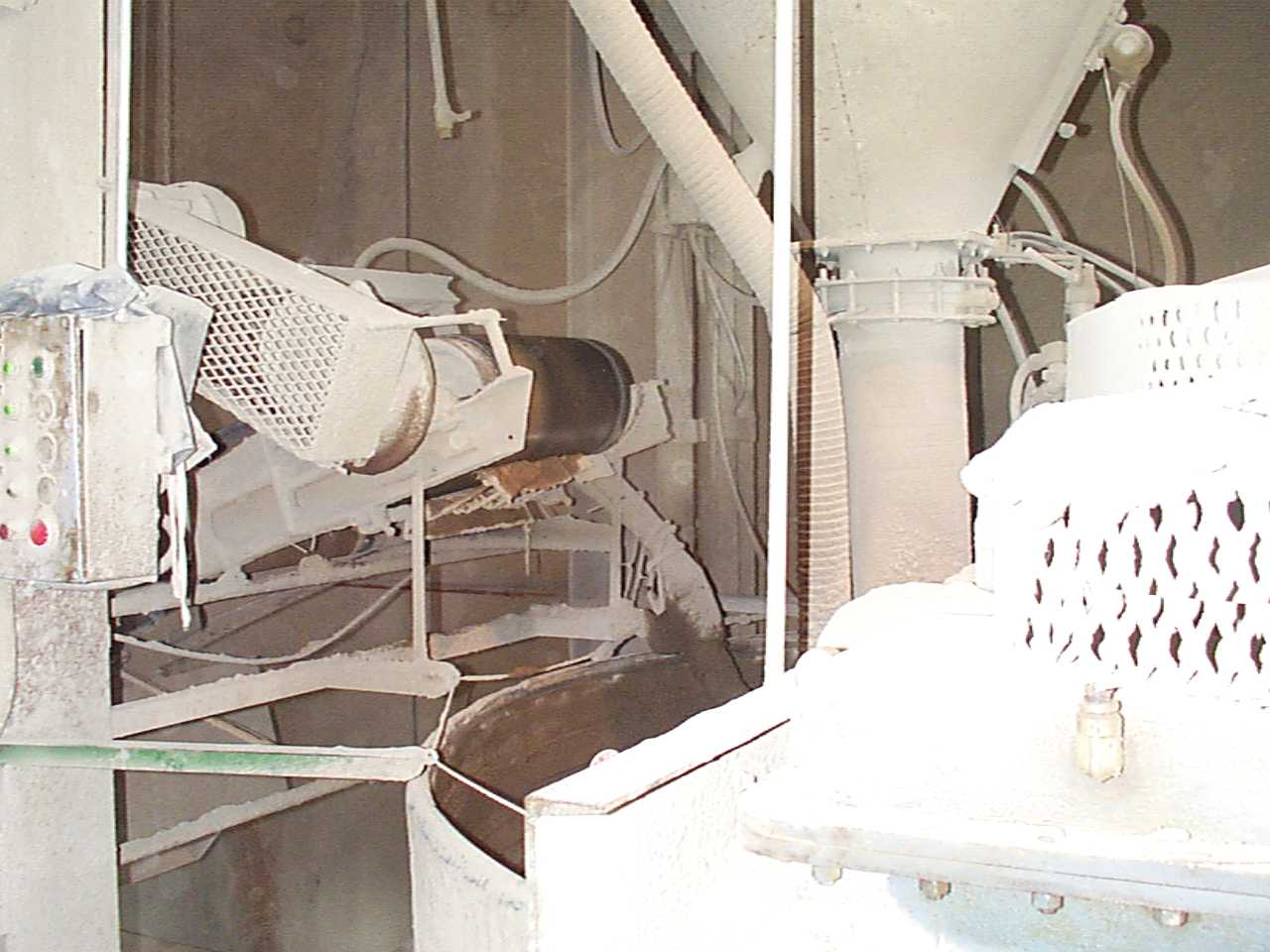

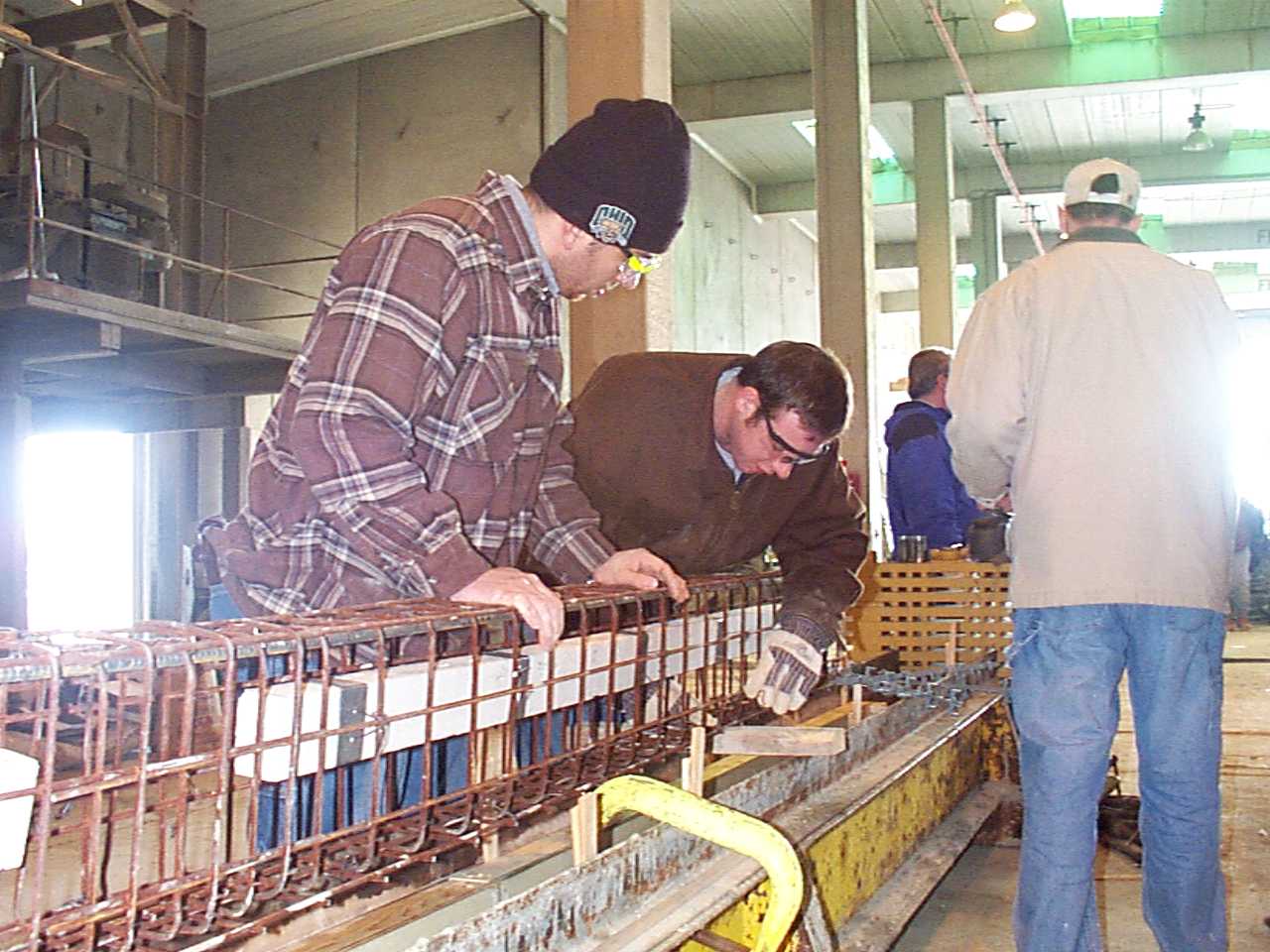

Tray2039.jpg (121249 bytes) Reinforcing steel in forms, preparing for mix.

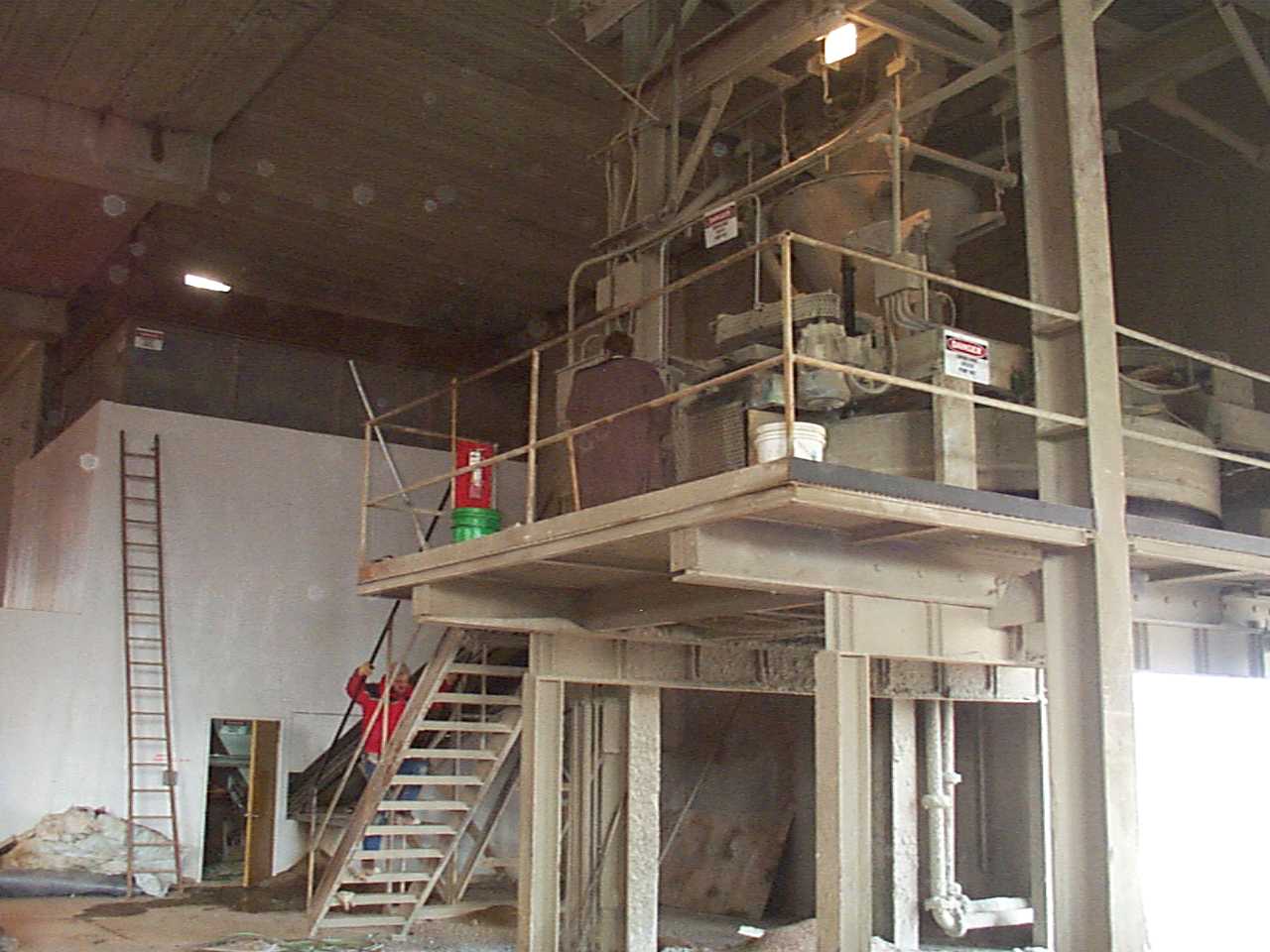

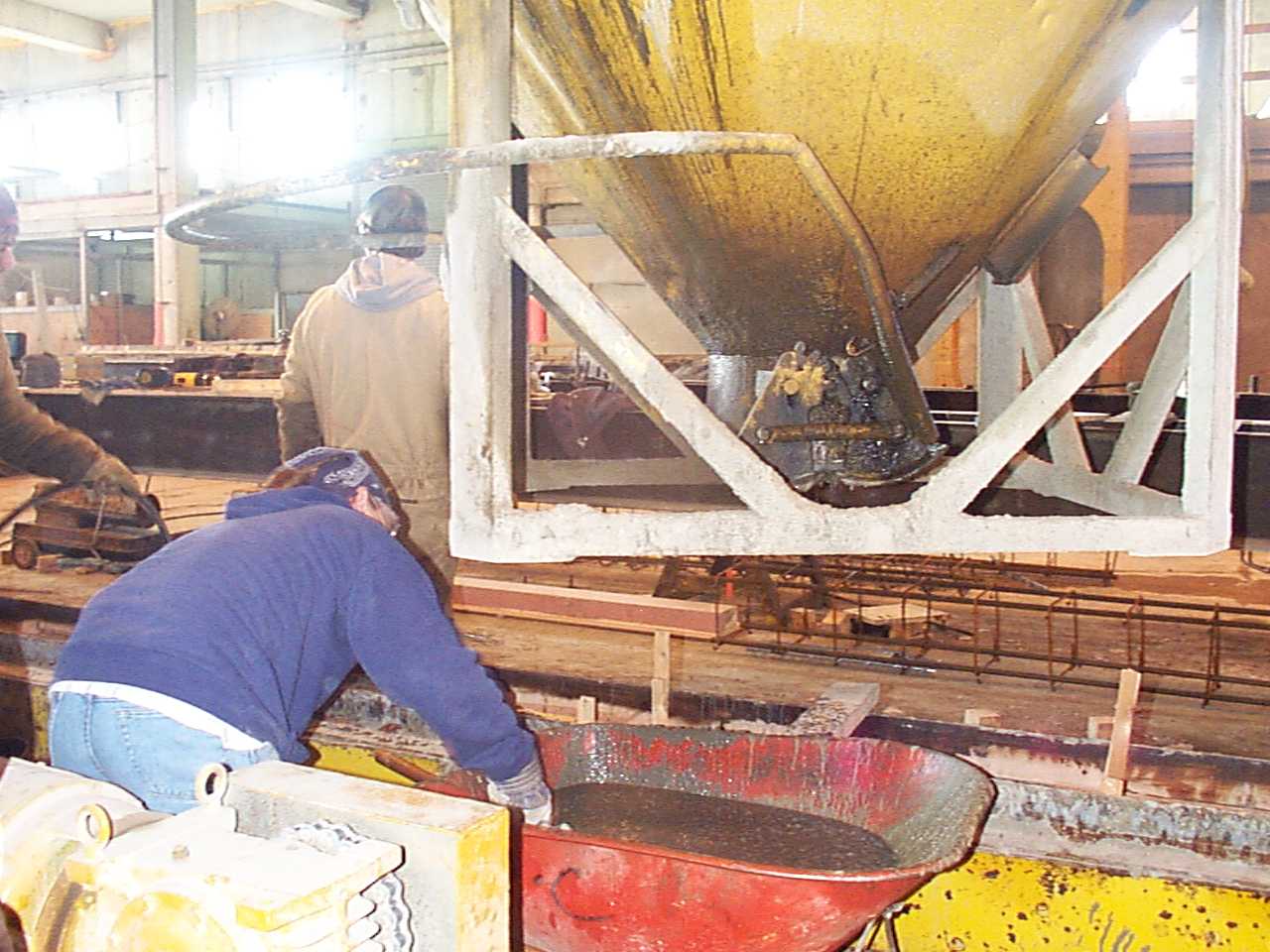

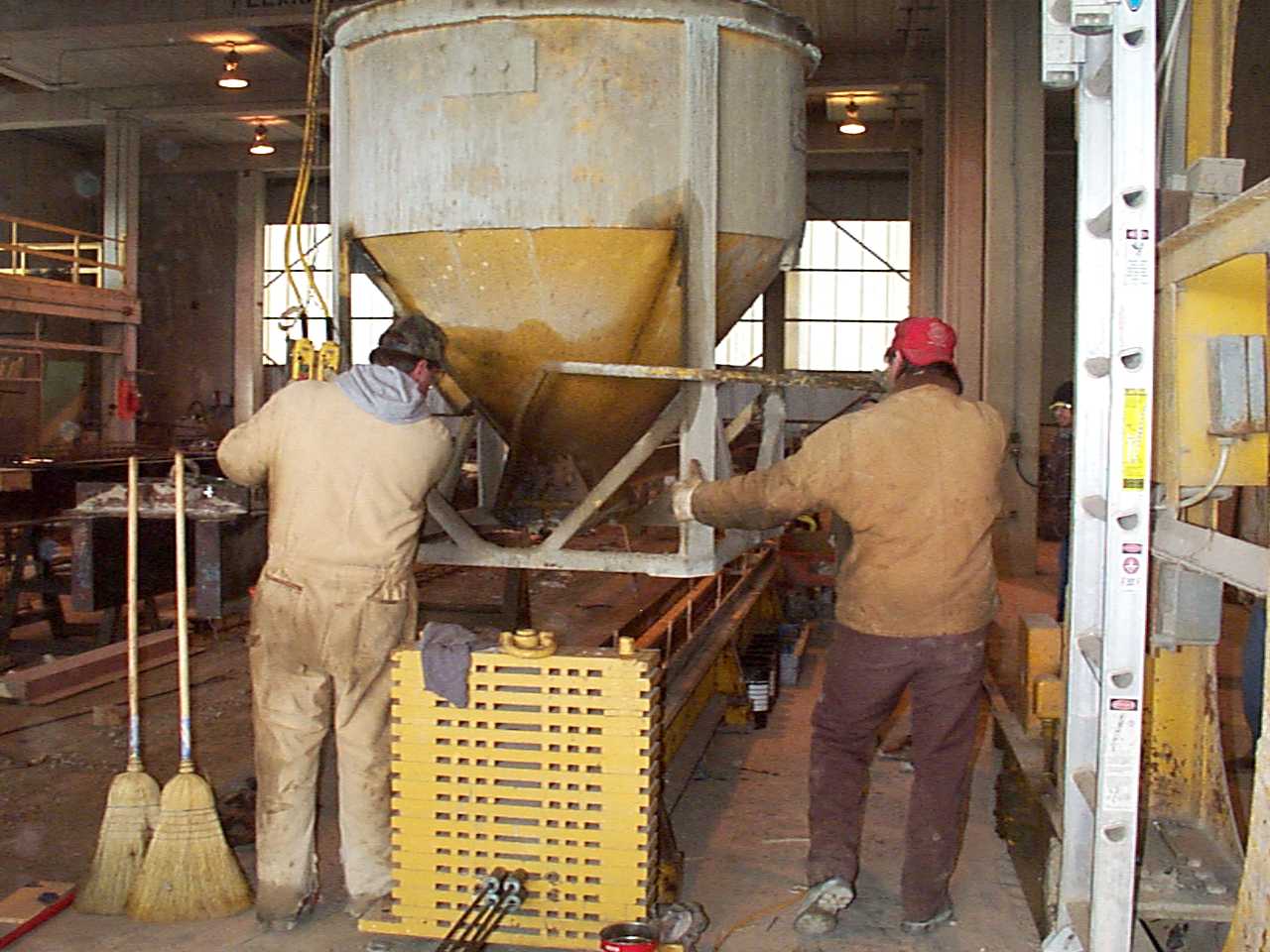

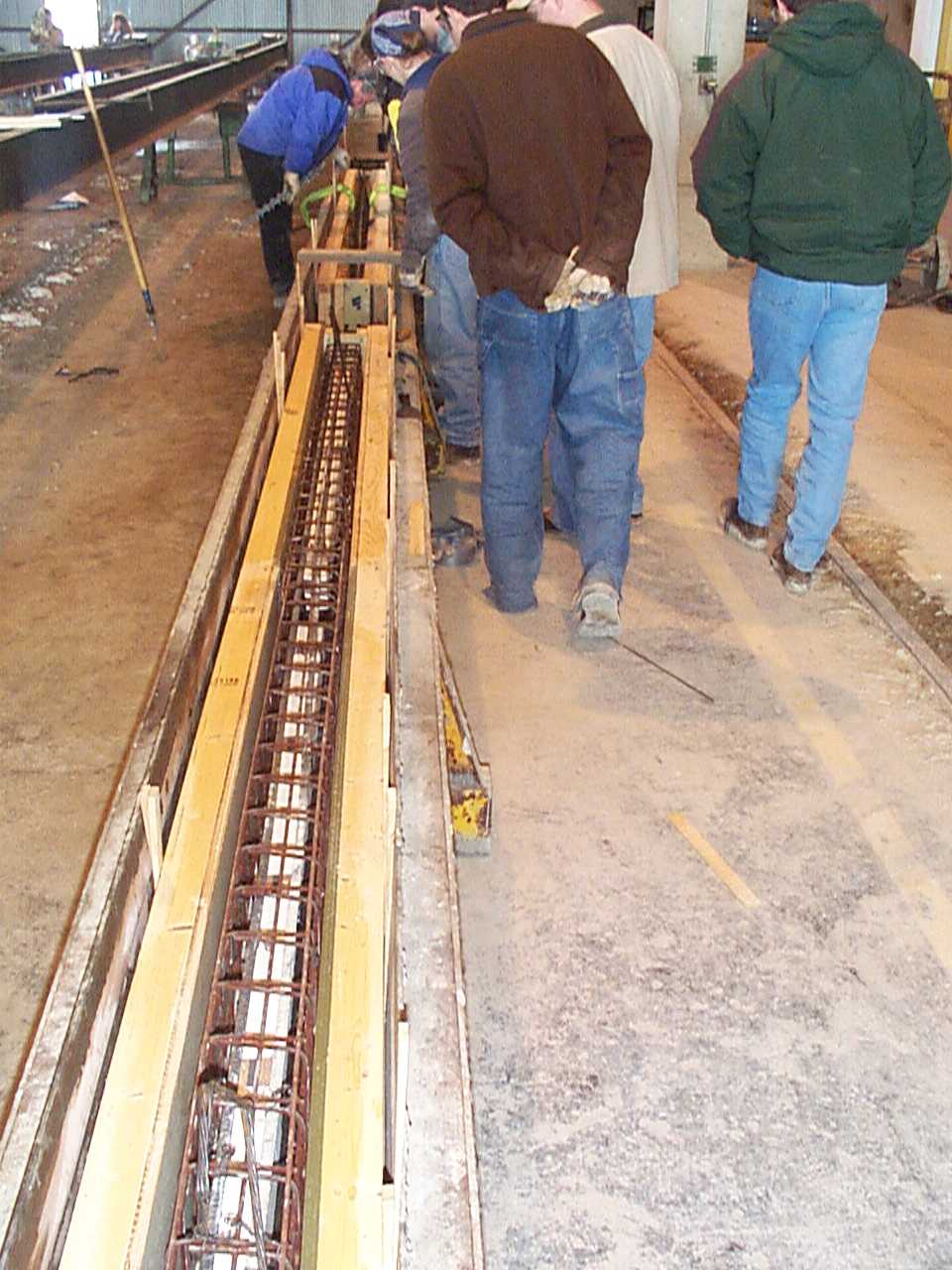

Tray2041.jpg (131988 bytes) Two formed beams:  one box beam, one I-shape.










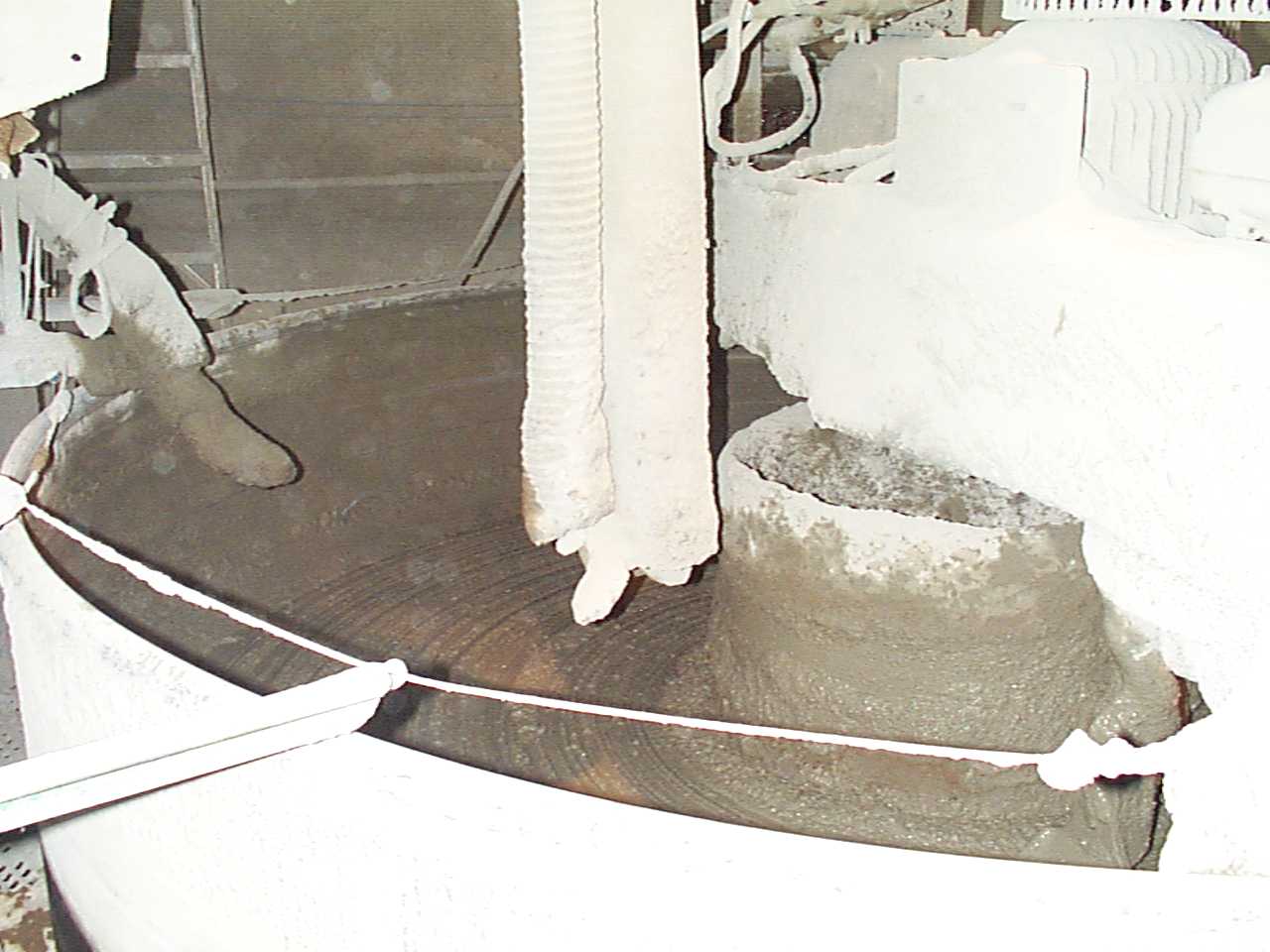

The Testing

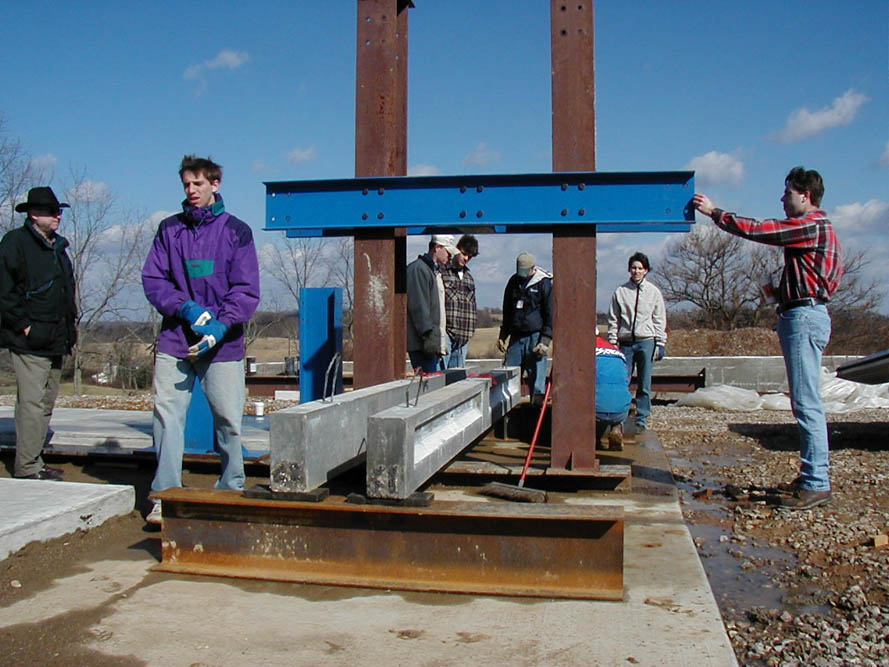

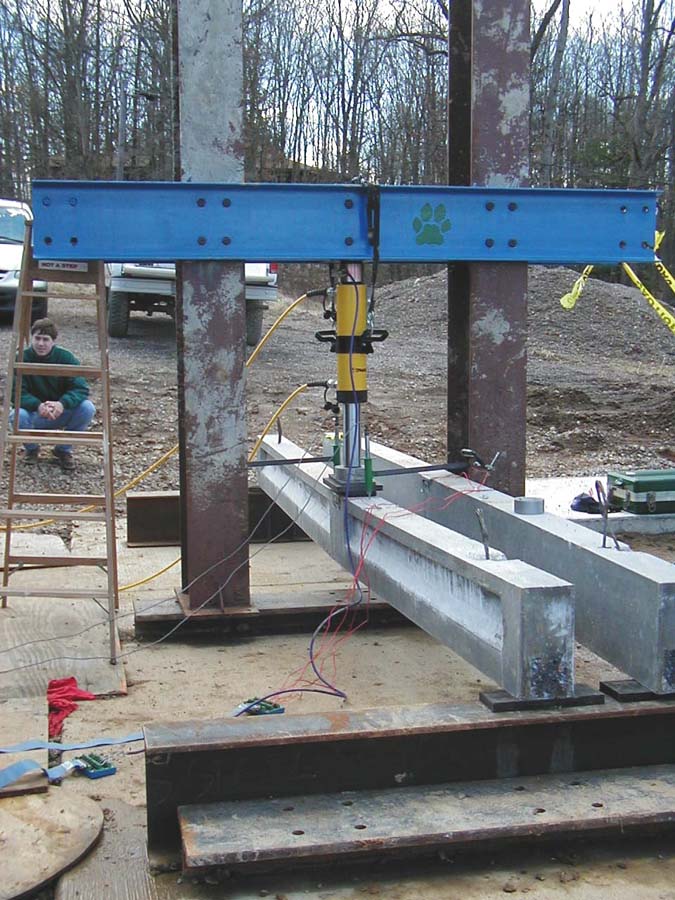

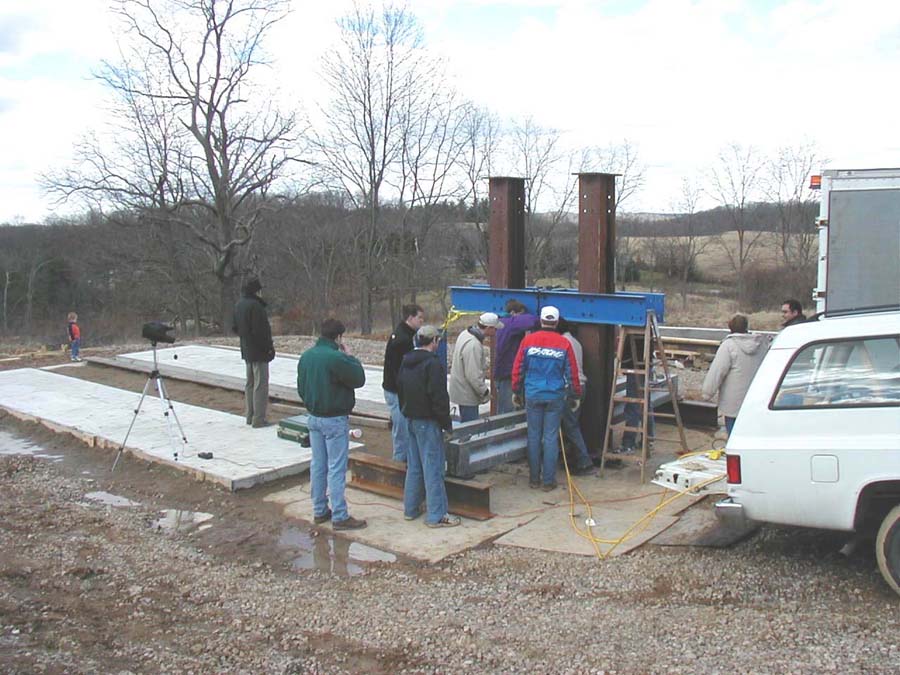

P1010001.jpg (124192 bytes) The setup of the reaction frame.  Two beams to be tested:  one I-beam and a box beam, both prestressed concrete.

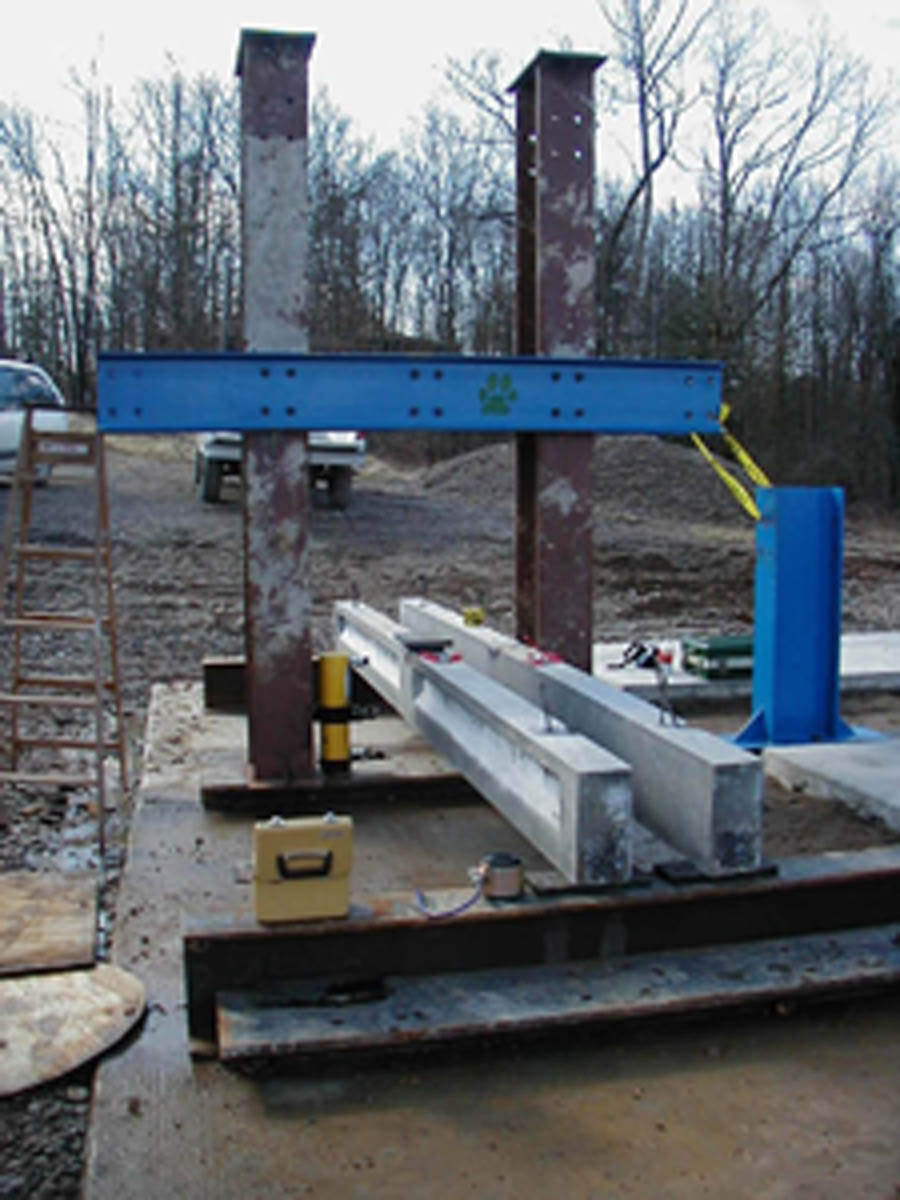

P1010002.JPG (138571 bytes) Another view of the setup before testing.

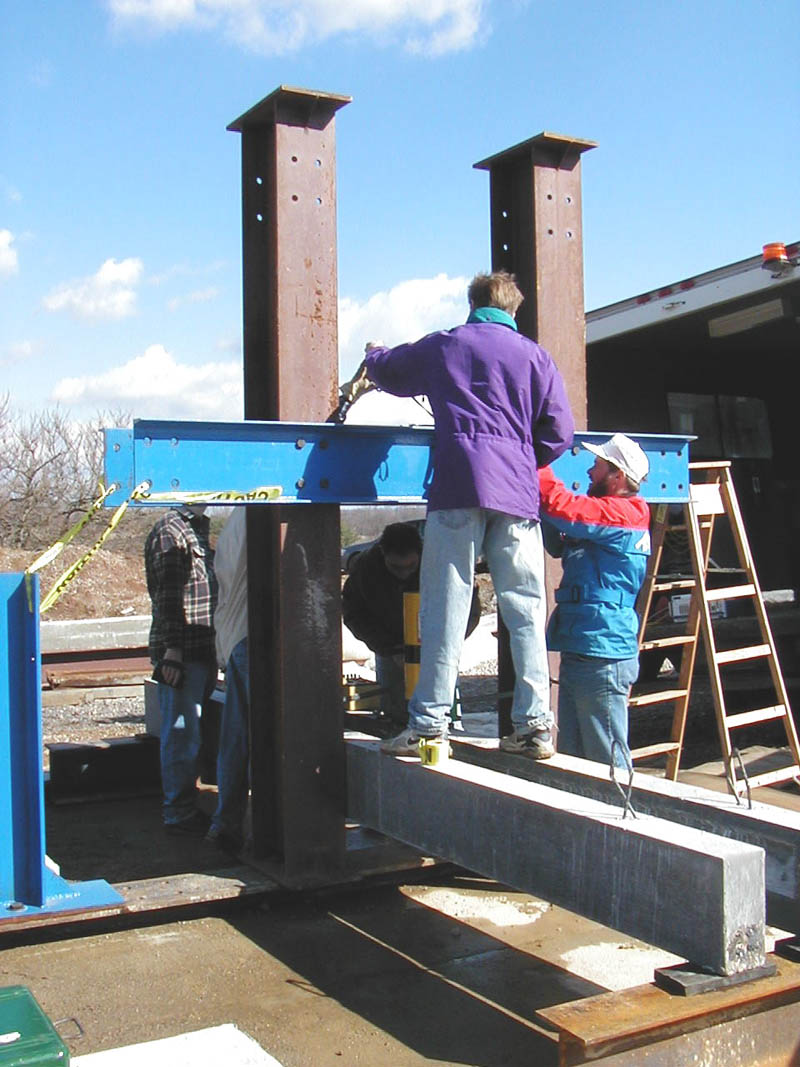

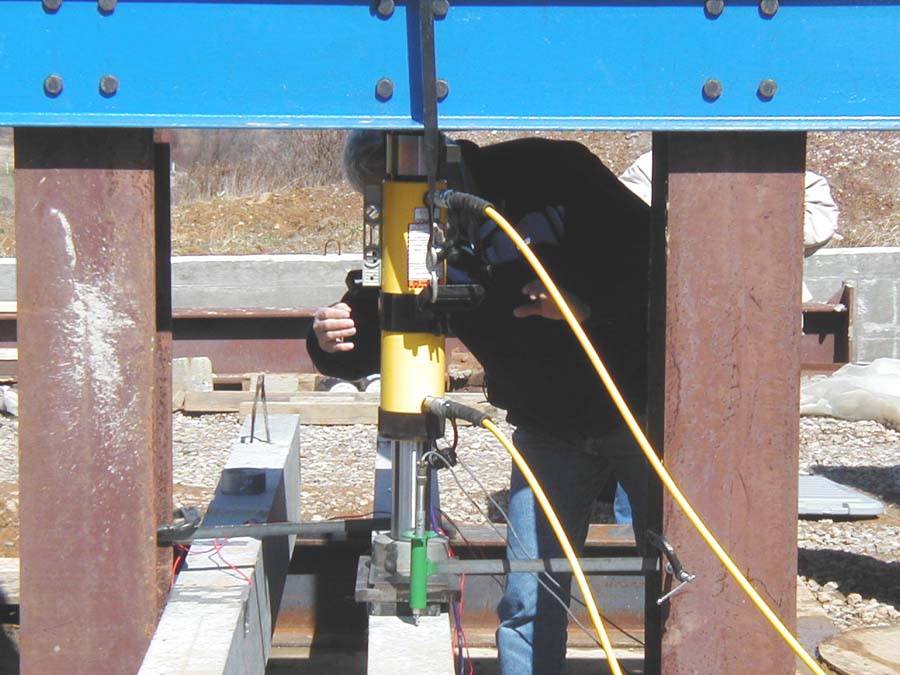

P1010003.jpg (143902 bytes) Getting Enerpac hydraulic cylinder into place.  The I-beam was tested first.

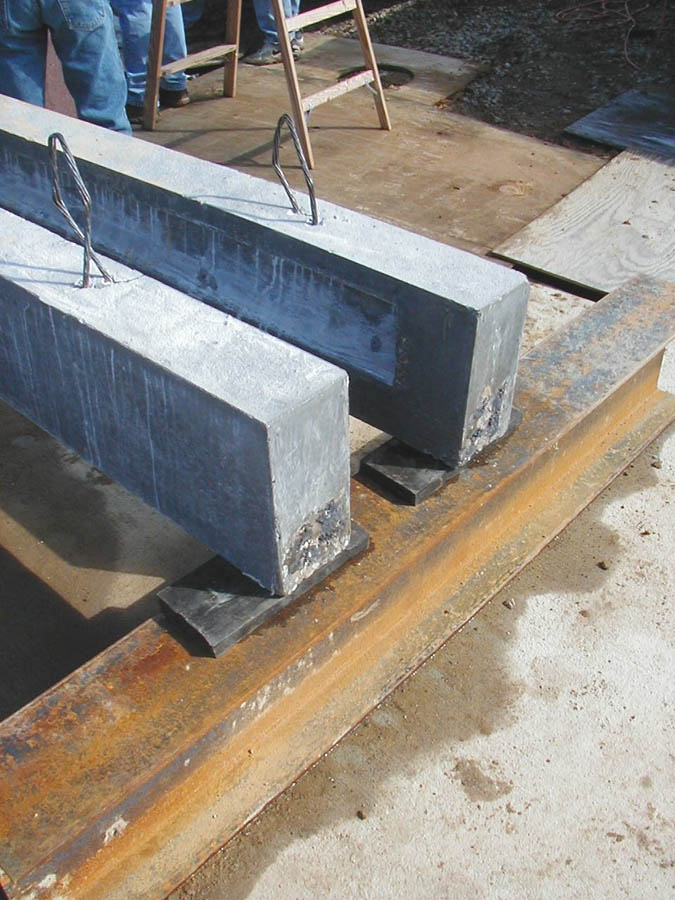

P1010004.jpg (133587 bytes) Each beam rested on elastomeric bearing pads.  They were 15 feet in length with a clearspan of 14'6".

P1010005.jpg (152107 bytes) Mike and Lisa setting up the instruments to measure vertical displacement.

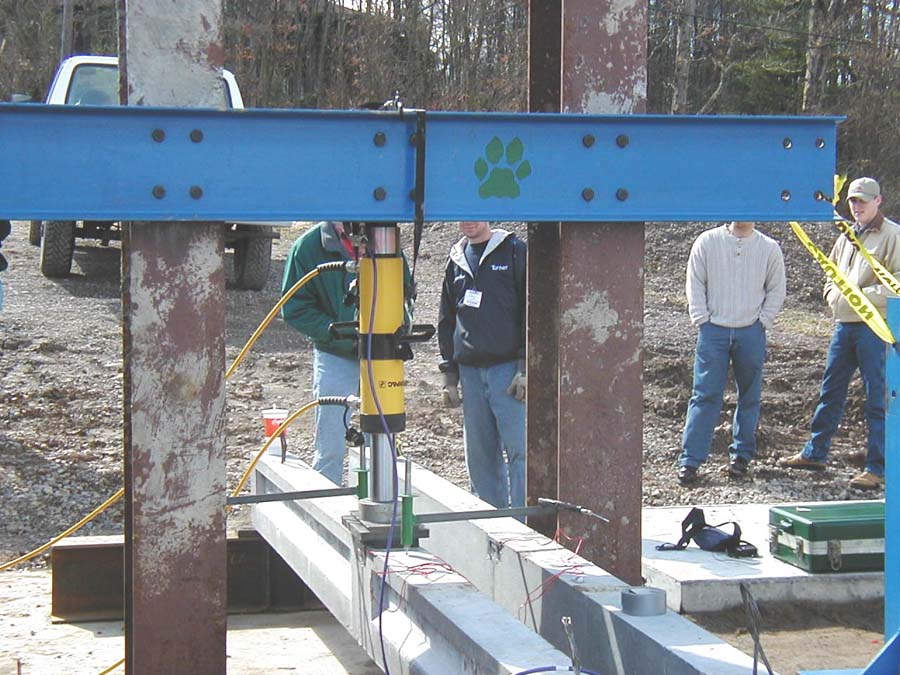

P1010007.jpg (100829 bytes) Enerpac in place, ready to commence testing.  The jack has a maximum capacity of 100 kips.

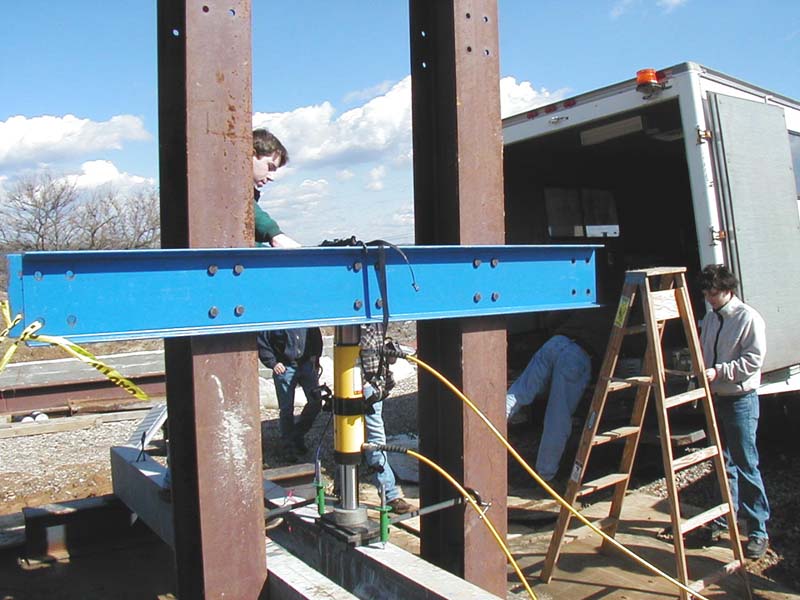

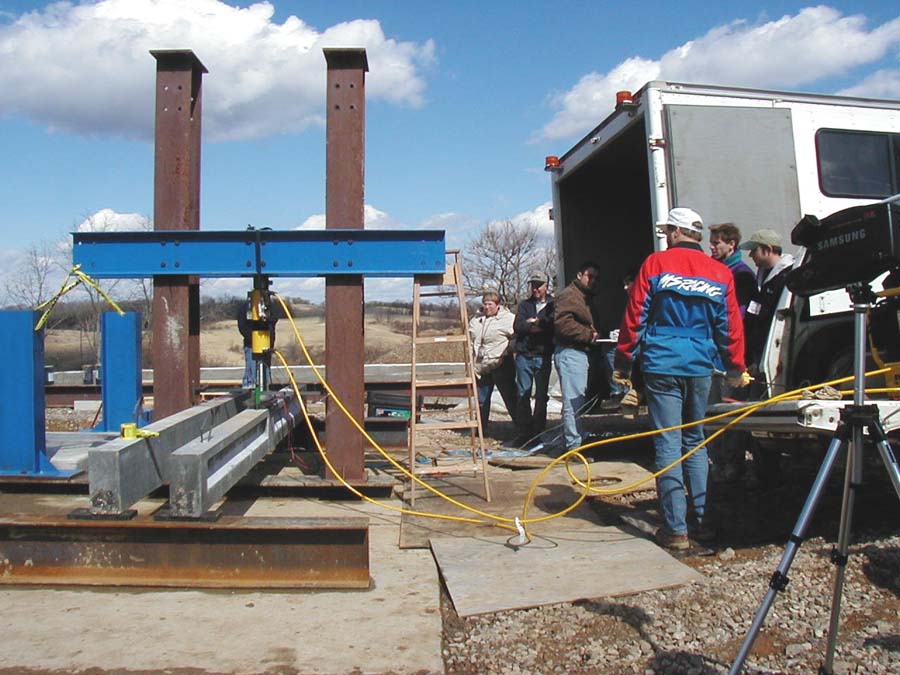

P1010008.jpg (91998 bytes) A view of the setup just before testing.


P1010010.jpg (145354 bytes) Mike, Bryan, and Nate, all members of the Big Beam Team.

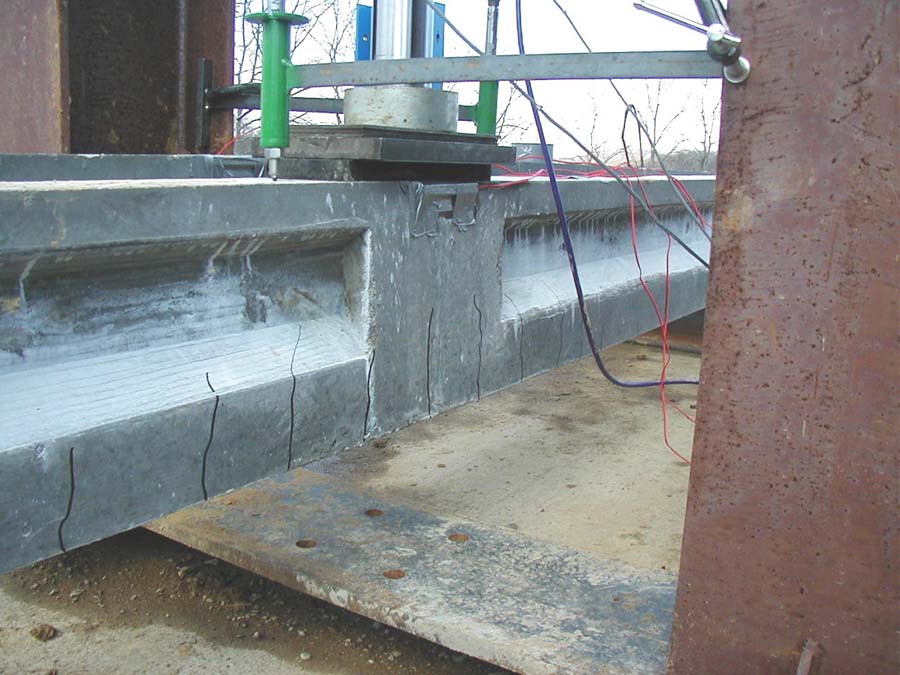

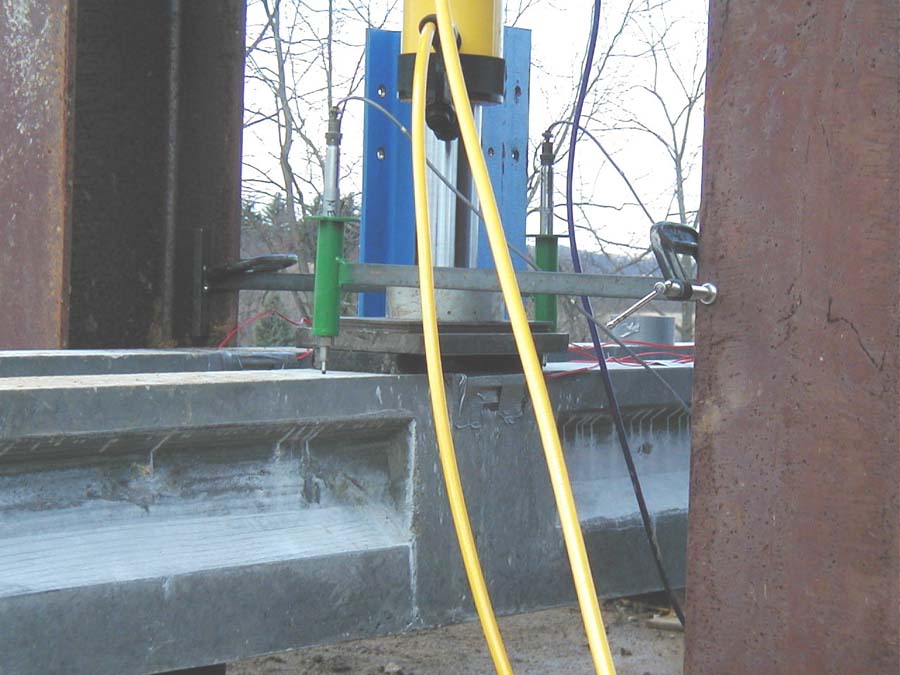

P1010014.jpg (90893 bytes) Close-up of the the test beam during testing.

P1010015.jpg (100614 bytes) Displacement occurring, cracks evident and marked.

P1010016.jpg (108991 bytes) Mike working his magic with the camcorder.

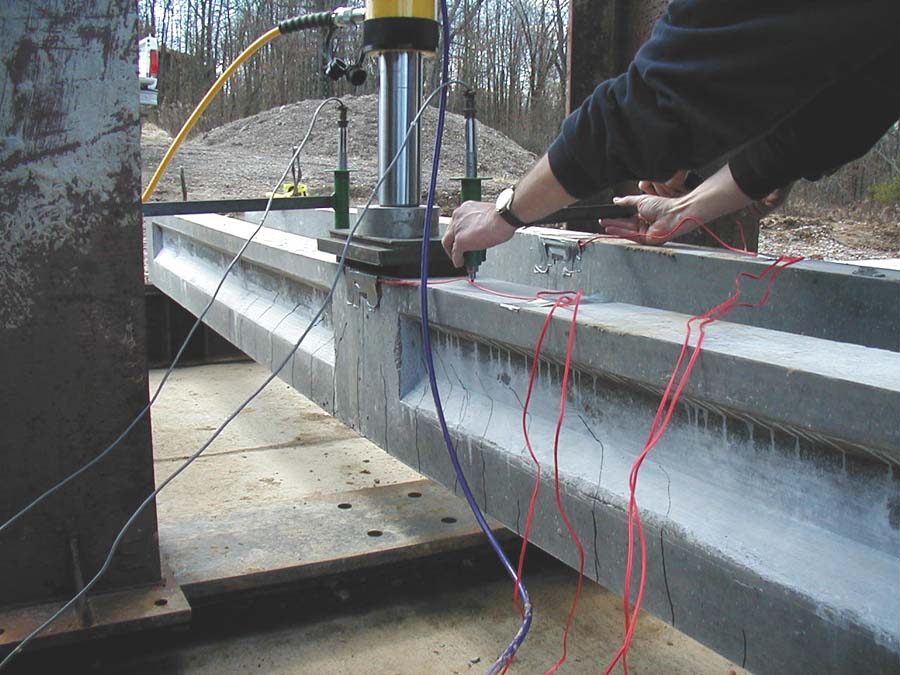

P1010017.jpg (106674 bytes) Adjustment of the gauges.  Cracks propagating, deformation obvious.

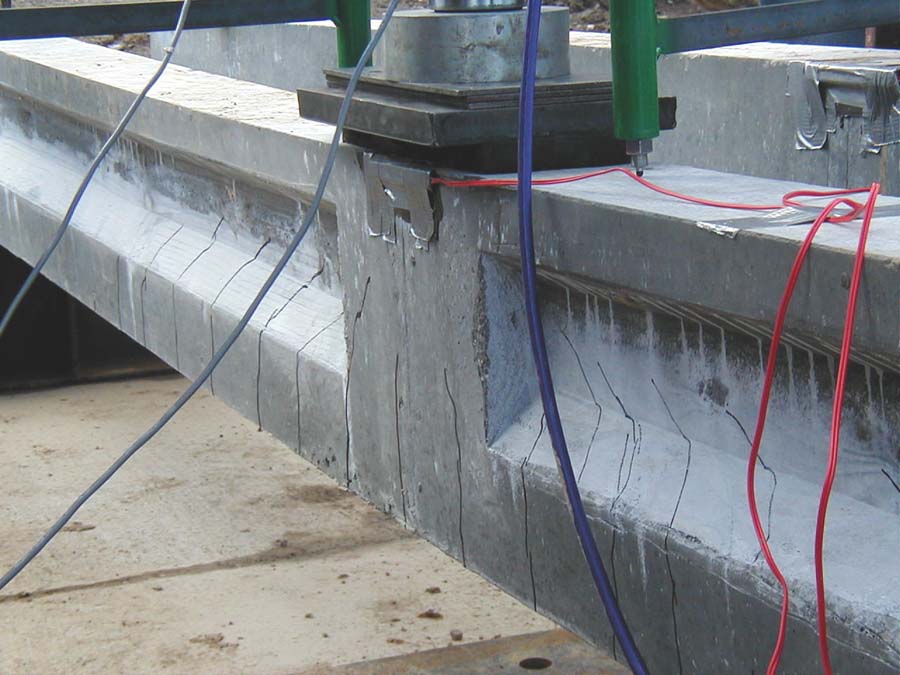

P1010018.jpg (91859 bytes) Proliferation of cracks, more deformation.

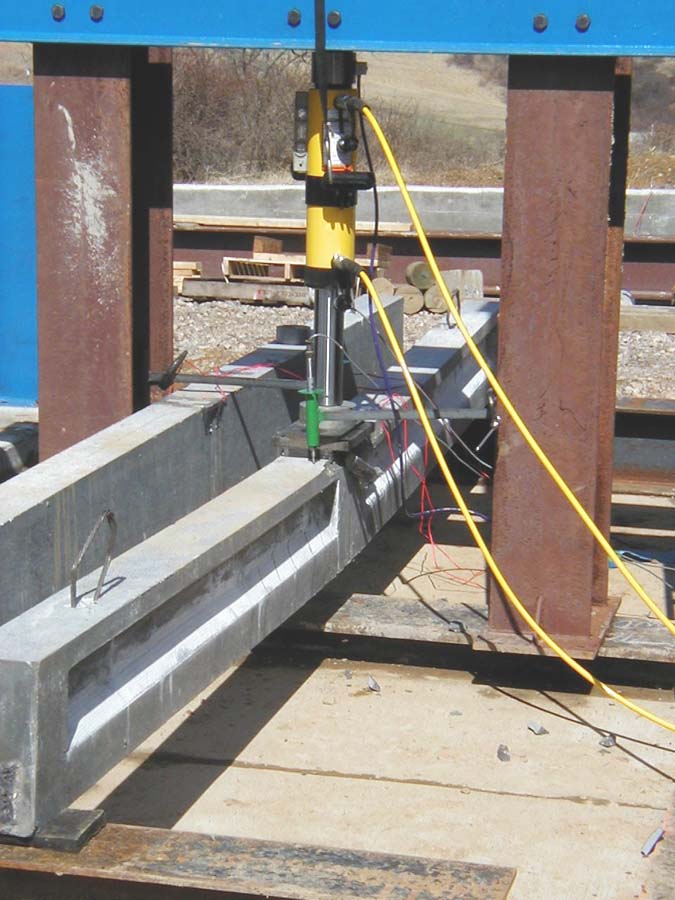

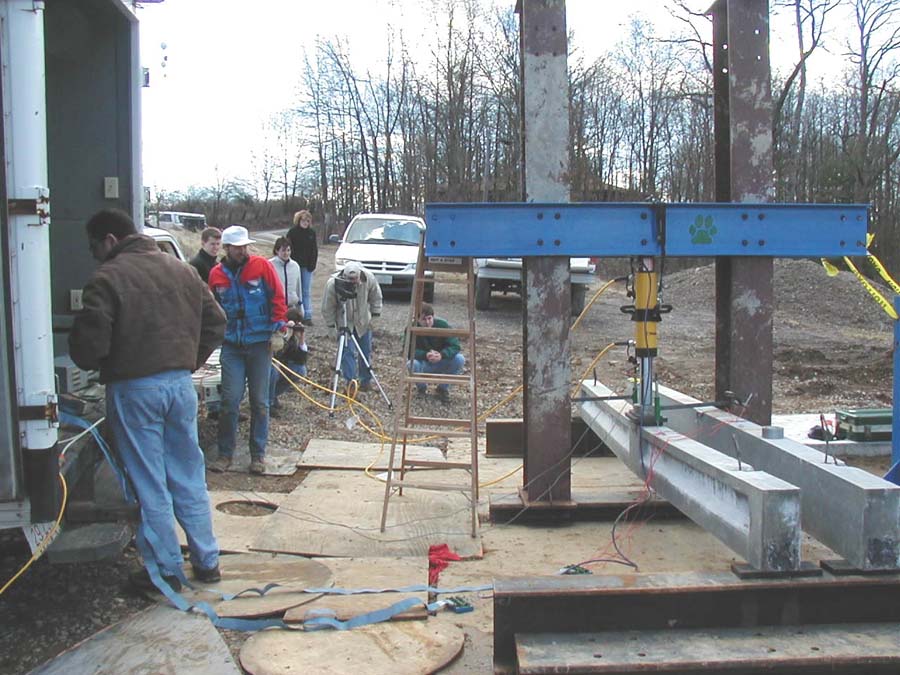

P1010023.jpg (100165 bytes) A lot of displacement evident.  Compression in top of beam causes chunks of concrete to fly off, can be seen around beam.

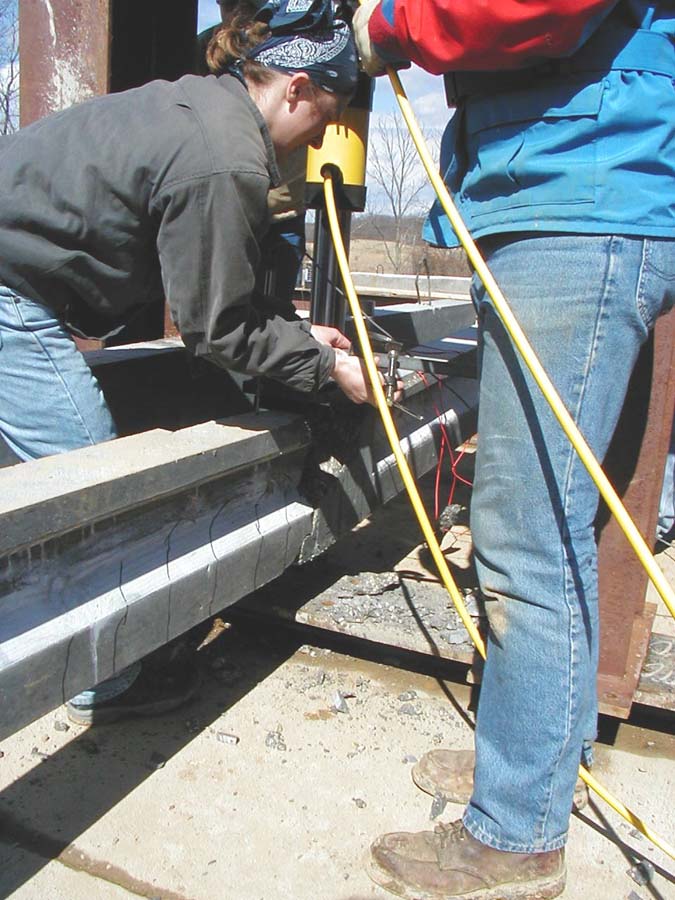

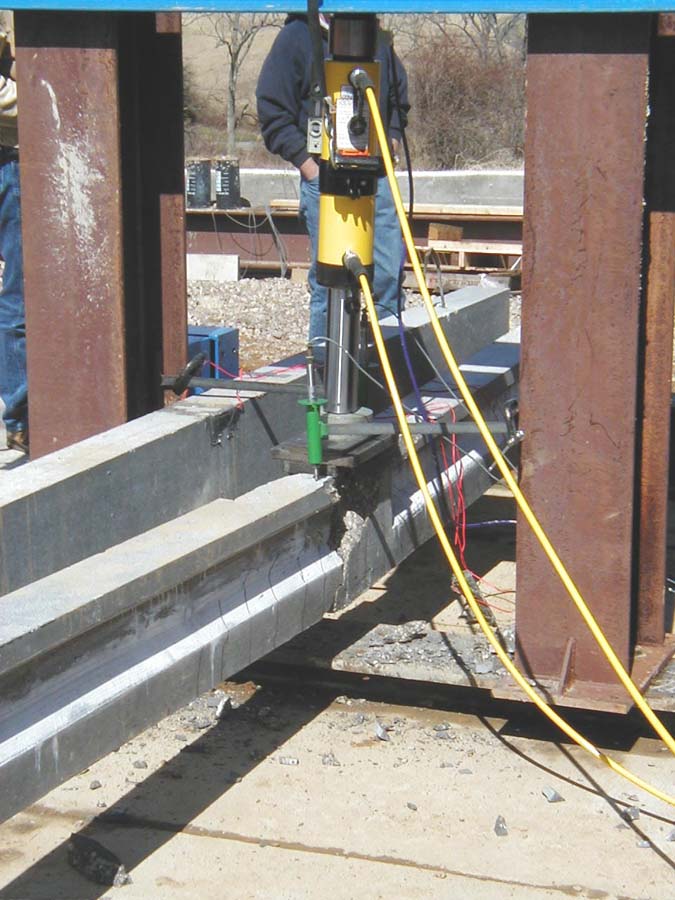

P1010025.jpg (117359 bytes) Removal of testing equipment from I-beam.


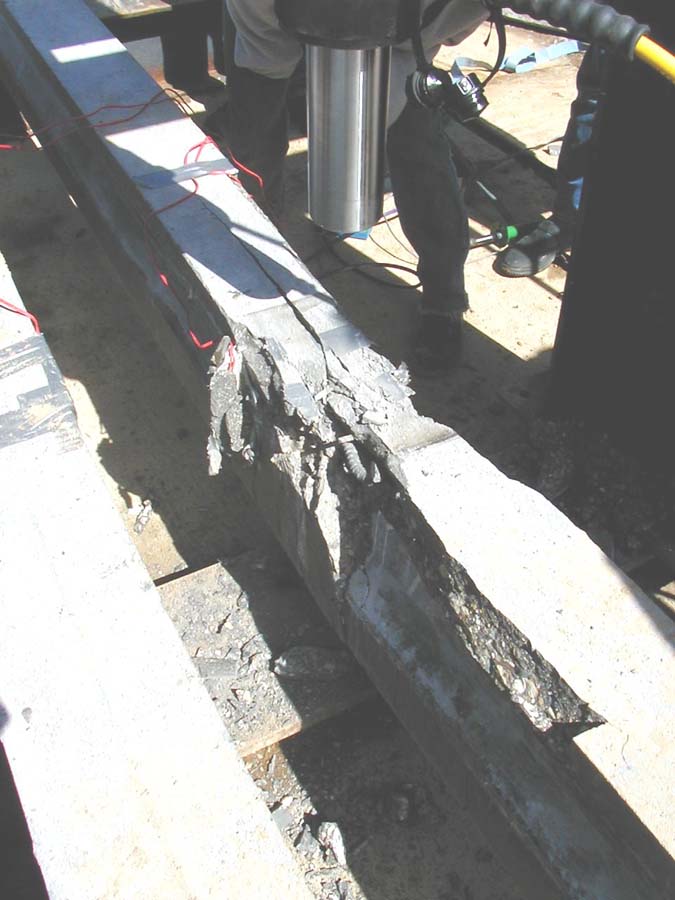

P1010027.jpg (95980 bytes) Close-up of failure, bent compressive reinforcing steel showing.

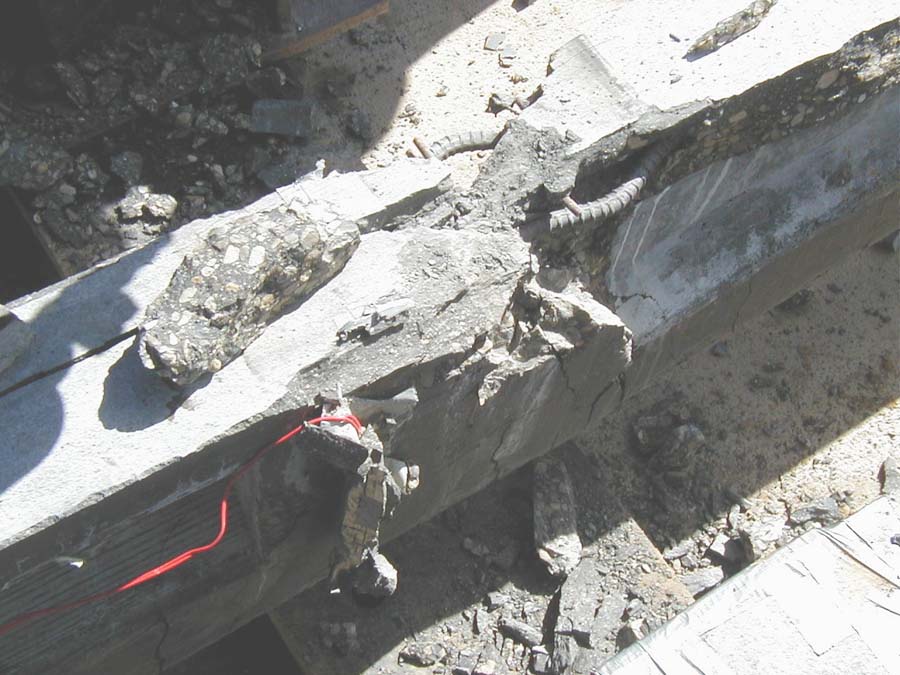

P1010028.jpg (110328 bytes) Another close-up with chunk of expelled concrete:  sheared through aggregate.  Good mix design.

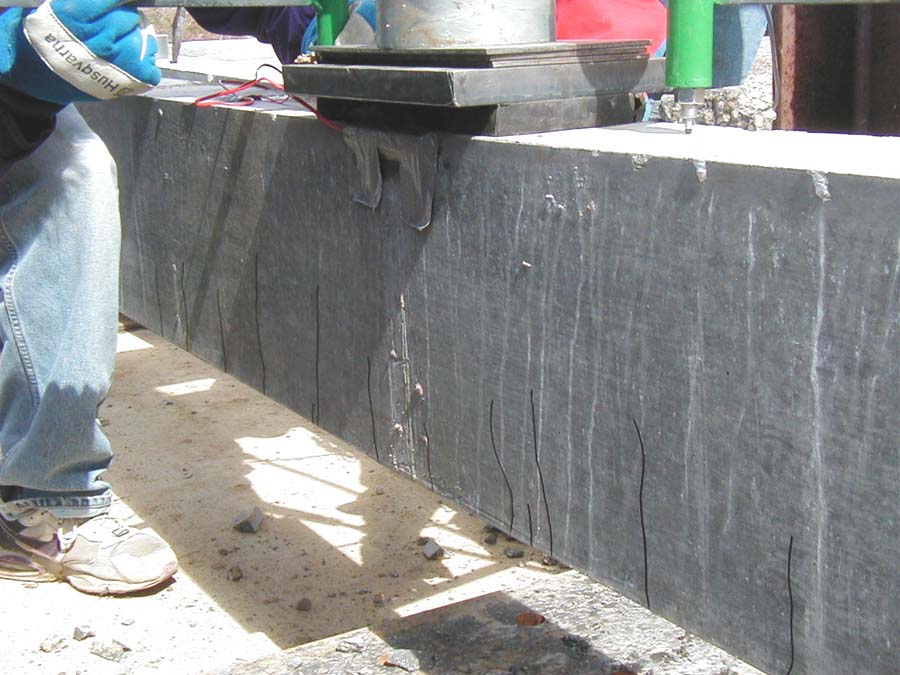

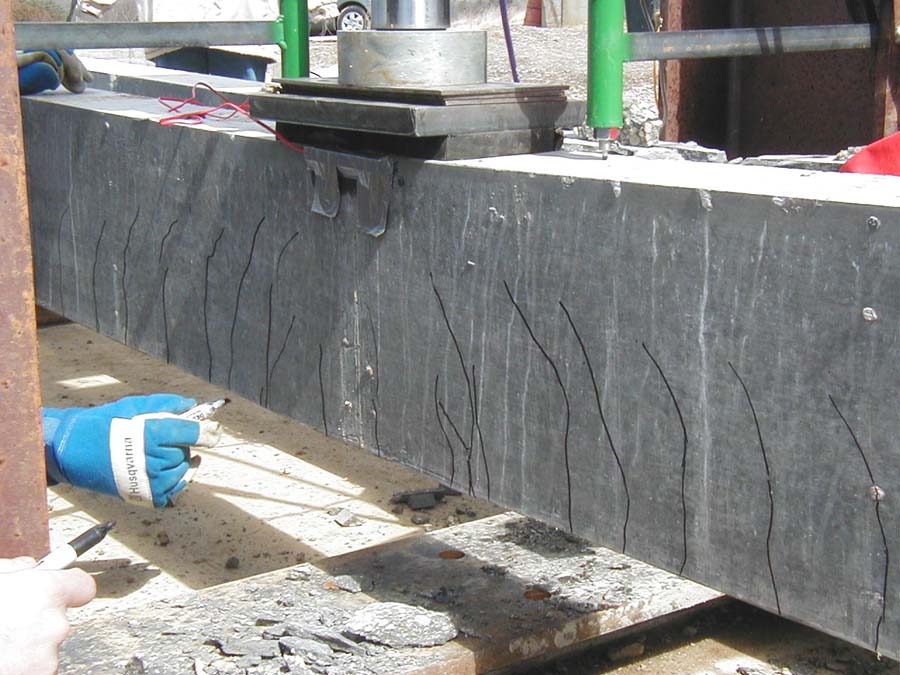

P1010029.jpg (99172 bytes) Next, the box beam.  Load applied, cracks marked.

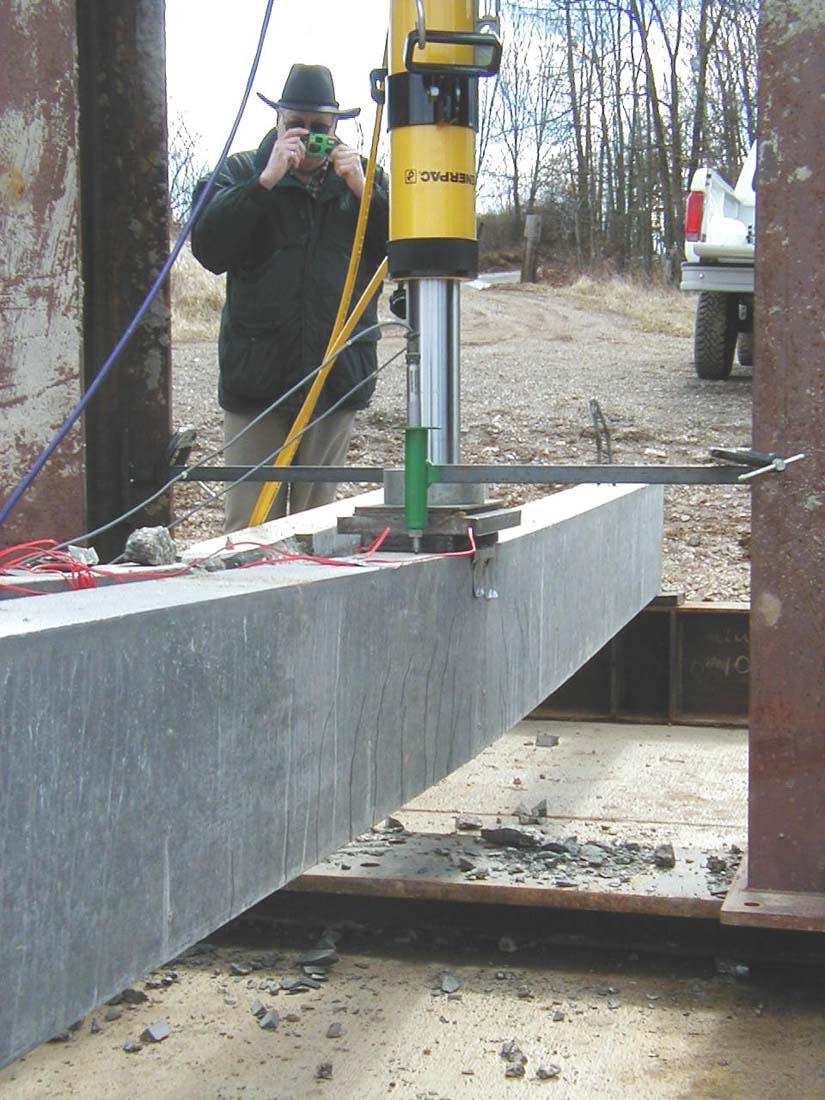

P1010031.jpg (151915 bytes) Deflection of box beam during testing.  Yes, that's Dave Leake in the background.

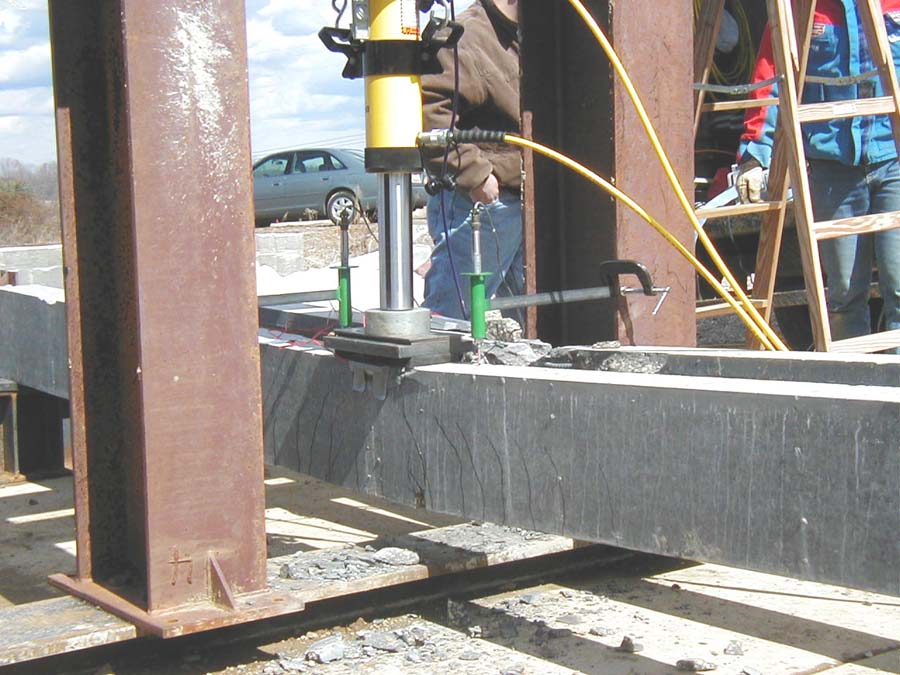

P1010032.jpg (113297 bytes) More deformation, failure of concrete in tension.

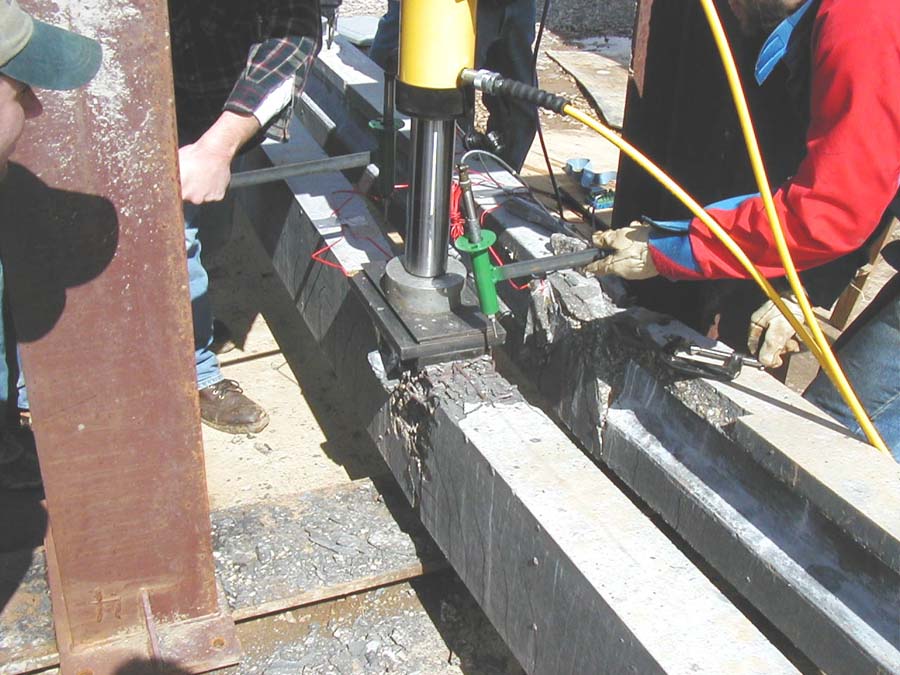

P1010033.jpg (116981 bytes) Complete failure of beam, removal of testing equipment.  Reinforcing steel exposed.

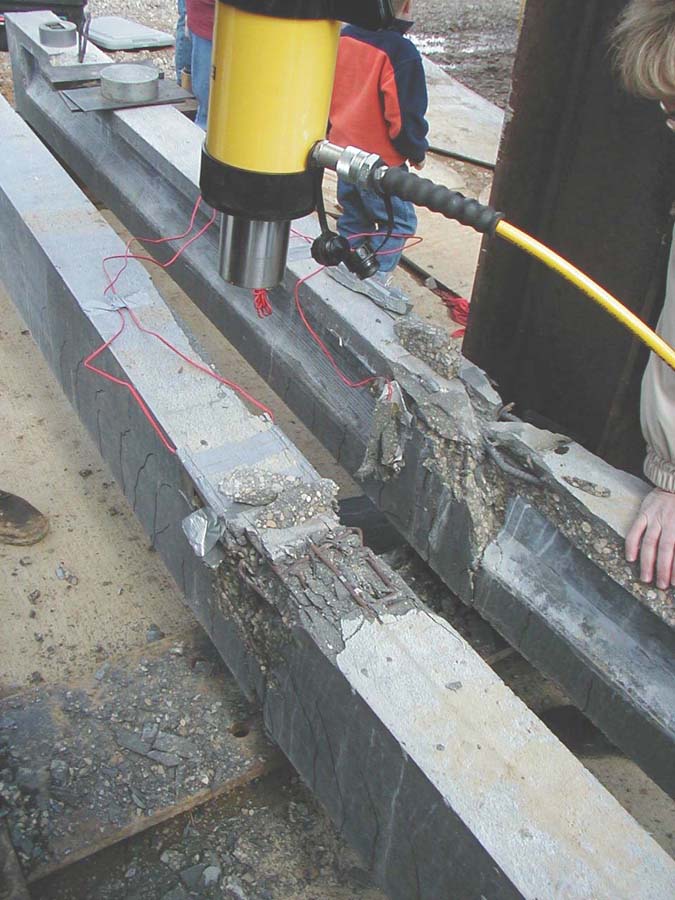

P1010035.jpg (108138 bytes) Two beams, side-by-side.  Box beam mix also sheared aggregate:  good mix.

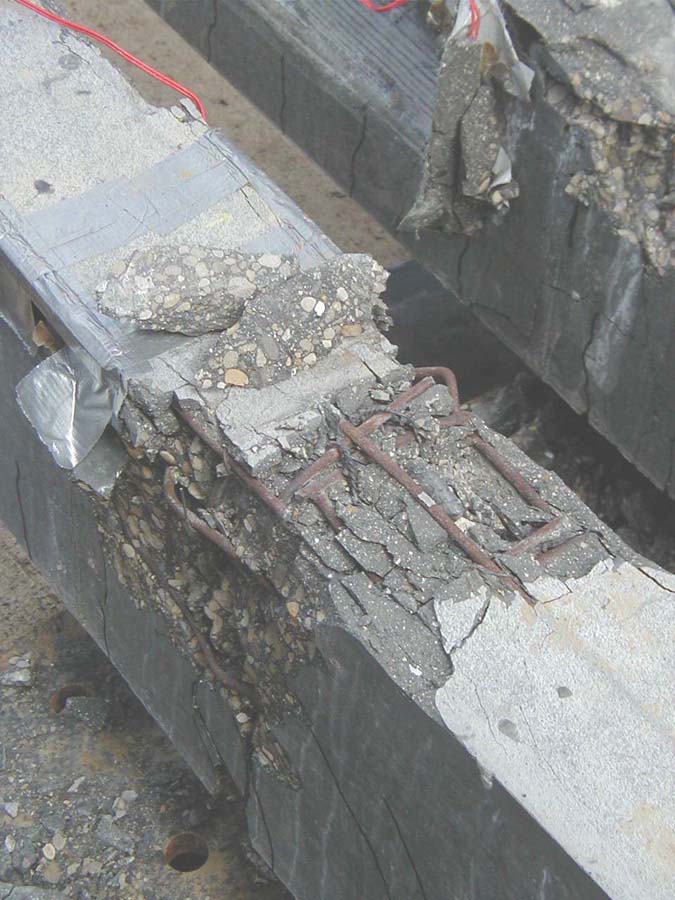

P1010036.jpg (108346 bytes) Close-up of box beam failure, bent rebar.

P1010037.jpg (136892 bytes) Close-up of both beams, aggregate sheared.
